Nitrogen Concentrator VortexVap A96

VortexVap Analyst A96 is a fully automated machine produced by ASHMAR, which is specially designed for concentration of small volume solution. It can process 192 samples at the same time. Nitrogen purge assembly enable consistent gas flow rate of each nitrogen blowing needle. The equipment is equipped with electric heating module to realize the rapid concentration of liquid samples. Not only VortexVap A96 is good at quick evaporation, parallelism, high degree of automation, but also environmentally friendly and safe. Applied in environmental analysis, biological field, chemical engineering, testing and food industry etc.

192

Number of sample

2mL

Sample volume

Get a quote

Product features

Automatic adjustment of purge

The product automatically adjusts the value of the pressure gradient of the purge airflow.Optimizes the concentration process.

Damping upper cover

The damping design of the upper cover plate allows for easy opening and closing of the instrument that enables multiangle hovering.

Flexible and adjustable

Air nozzle can be removable, Airflow Angle and left/right position can be precisely adjusted.

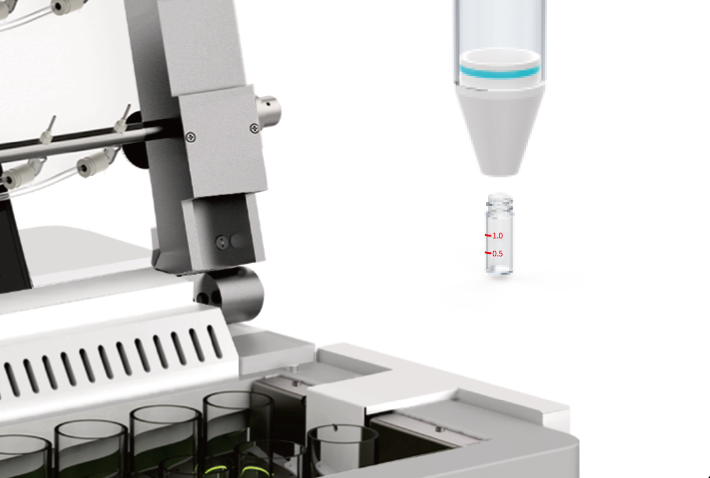

Combined Separable Vial Concentrator Tubes

Adapted to the chromatographic vial concentration tube. concentrated samples do not need to be transferred twice,and can be tested directly on the machine,while the concentration tube can be disassembled and cleaned independently,convenient and fast.

Transparent window

Transparent window and water bath illumination system are designed to observe the status of the sample during the concentration process.

Precise volumizing of concentrated samples

Patented optical sensor technology enables precise volume determination of concentrated samples without personnel attendance.

Product parameters

Input voltage

AC 100-240V,50/60Hz

Power consumption

1000W

Gas

High purity nitrogen or other inert gases are recommended

Operating environment

Ambient to 40°C, 20% to 80% relative humidity (noncondensing)

Noise level

70dB

Dimensions LxWxH(mm)

430x430x300

Weight(main unit)

About32kg

Certification

Product selection

Number of sample

Sample volume

Maximum Quantitative concentration

End-point Determination Module

Tube independent control

Touch screen

Screen Angle adjustment range

Water bath temperature range

Water bath temperature monitoring

The purge pressure is adjustable in multiple stages

Maximum allowable intake pressure

Warming time

Automatic Nitrogen Purging Concentrator VortexVap A8

200mL

0.5mL/1mL/Support for customization

Support

7 Inch

0~85°

Ambient to 90C°

Support

0.31MPa(45PSI)

Support

<20min(20~55℃)

Automatic Nitrogen Purging Concentrator VortexVap A12

200mL

0.5mL/1mL/Support for customization

Support

7 Inch

0~85°

Ambient to 90C°

Support

0.31MPa(45PSI)

Support

<20min(20~55℃)

Automatic Nitrogen Purging Concentrator VortexVap A24

100mL

0.5mL/1mL/Support for customization

Support

7 Inch

0~85°

Ambient to 90C°

Support

0.31MPa(45PSI)

Support

<20min(20~55℃)

Automatic Nitrogen Purging Concentrator VortexVap A60

60mL

——

Whole row independent

7 Inch

0~85°

Ambient to 90C°

Support

0.31MPa(45PSI)

Support

<20min(20~55℃)

Automatic Nitrogen Purging Concentrator VortexVap A96

192

2mL

——

Support

7 Inch

0~85°

Ambient to 80C°

——

0.8MPa(116PSI)

Support

<20min(20~55℃)

Product configuration

Standard configuration

Describe

A96 Automatic sample concentration unit

A60 Operation Software

Host one year warranty

Order number

600102

W00002

S60201

Consumables

Describe

Quant concentration tube, 50mL w/ 0.5/1.0 tail tube

Quant concentration tube, 100mL w/ 0.5/1.0 tail tube

Quant concentration tube, 150mL w/ 0.5/1.0 tail tube

Quant concentration tube, 200mL w/ 0.5/1.0 tail tube

Concentration tube, 50mL w/ detachable Chromatograpy vial

Concentration tube, 100mL w/ detachable Chromatograpy vial

Concentration tube, 150mL w/ detachable Chromatograpy vial

Concentration tube, 200mL w/ detachable Chromatograpy vial

1.5mL capped Centrifuge tube

2mL capped Centrifuge tube

1.5mL screw cap Centrifuge tube

2mL screw cap Centrifuge tube

15mL round bottom Centrifuge tube

10mL Taper bottom Centrifuge tube

15mL Taper bottom Centrifuge tube

12 x 75mm tube

16 x 75mm tube

16 x 100mm tube

16 x 125mm tube

20 x 150mm tube

Order number

C00007

C00005

C00003

C00001

C01030

C01029

C01028

C01027

C00023

C00024

C00025

C00026

C01004

C00021

C00020

C00010

C00013

C00014

C00015

C00018

Optional configuration

Describe

Interchange module for Deep well/shallow well configuration

Order number

A00039

Selection recommendation:

Main unit + Software + Concentration Tube + Host one year warranty
eg: 960101+W00011+60*C00001+S96101
